| Standard Machine Specifications | OP : Option | ||
|---|---|---|---|
| Item | Specifications | ||
| Max. machining diameter | ø13mm (1/2 in) | ||
| Max. headstock stroke | 205mm (8 in) | ||

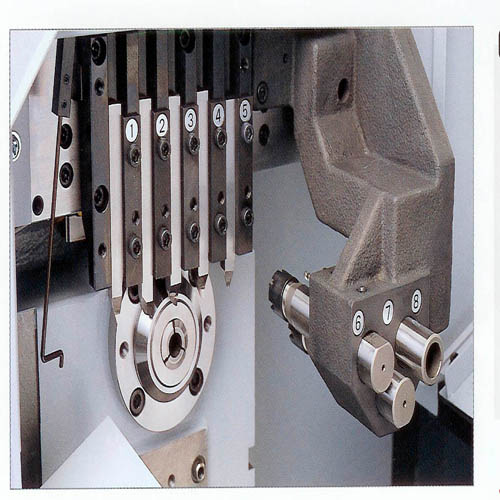

| Tool | Number of tools | 6 tools | |
| Tool shank | 10mm x 80~130mm | ||
| 3-spindle attachment | Number of tools | Stationary tool | 3 tools (One more tool can be added :OP) |
| Power-driven tool | 1 tool (tool can be added :OP) | ||
| Max. drilling capacity | Stationary tool | ø7mm (9/32 in) | |
| Differential speed drilling tool | ø4mm (5/32 in) :OP | ||
| Max. tapping capacity | Stationary tool | M6 x P1.0 | |
| Differential speed tapping tool | M2.5 x P0.45 :OP | ||
| Main spindle speed | 12,000min-1 | ||
| Main spindle motor | AC spindle motor
2.2kw(continuous)/3.7kw (15min./50%ED) | ||
| Power-driven att. spindle speed | 8,000min-1 | ||
| Power-driven att. drive motor | Inverter motor 0.75kw | ||
| Coolant tank capacity | 95 litres | ||
| Coolant motor | 0.18kw | ||
| Coolant | Non-water soluble coolant, water soluble coolant | ||
| Dimension (WxDxH) | 1,425 x 680 x 1,635mm | ||
| Weight | 1,450kg | ||
| Power Consumption | 5.0KVA | ||
| (Note) The above
machining capacities apply to S45C (AiSI 1045, DIN C45) material. The machining capacities may differ from listed values depending on the machining conditions, such as the material to be machined or the tools to be used. | |||
